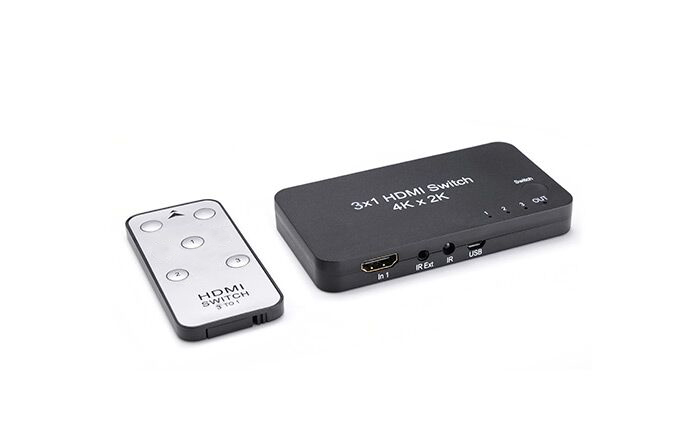

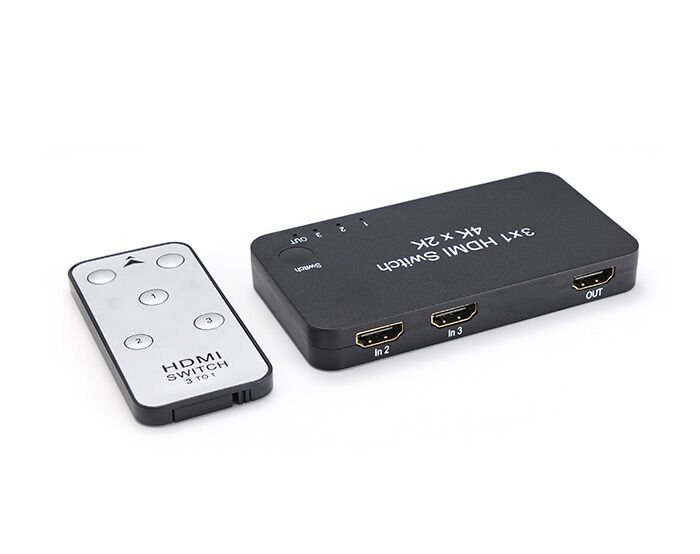

plastic 3x1 HDMI Switch SW301P

Update: 2018/2/6      View:
  • Brand:    COAS
  • Type:    SW301P
  • Order Online

       HDMI Switch 3x1

Model No. SW301P

3 HDTV HDMI devices to be switched easily into one HDTV HDMI compatible monitor or projector.
Full HD 1080P/120Hz/60Hz
3D and 4K*2K support

Support X.V. Colour
Supports DTS/Dolby/DTS-HD/Dolby True HD/LPCM7.1/AC3

Bi-direcional COAS IR control system
Receiver Range : 20 meter
Emitter Range :    6 meter

IR cable can be up to 300 meter


Input Port   :                         3xHDMI(Female connector), 1xUSB

Output Port :                         1xHDMI(Female connector), 1xIR Channel

Input lead Max Length :         for 4K — 7M , for 1080P — 20M
Output Lead Max Length :      for 4K — 7M , for 1080P — 15M
Bandwidth :                          18Gbps
Output Resolution :               3840 x 2160@50/60, 480i — 1080P@ 50/60
                                             1080P@24/50/60 , VGA -UXGA
Operating Temp :                  -15°C~55°C/5°F~131°F


Deep Color :                           36bit
Housing :                               ABS
Dimensions :                          110mm(L)x60mm(W)x13.5mm(H)
Weight :                                  66g
Power Supply Input :               100 -240V — 50/60 MHz ,0.3A max
Power Supply Output :             micro USB cable 1m


•1 x HDMI switch unit
•1 x Remote
•1 x 1m USB A to micro cable

 •1 x User Manual


•HDMI2.0 , HDCP 2.2 and DVI compliant

•Support full 3D pass-through

 •Support 4k x 2k high resolution

•Support IR control

•Support CEC bypass
•External and internal EDID settings

.Dedicated LED indicator lights

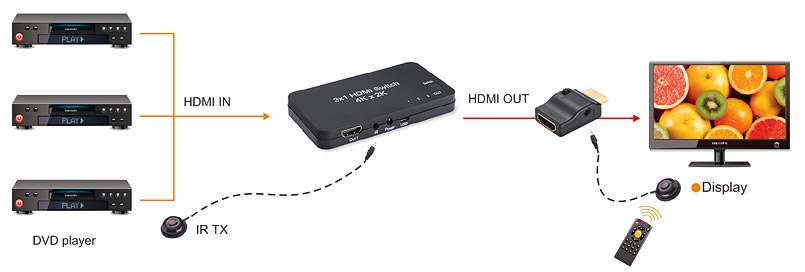

•Connect HDMI input ports to the HD signal source equipments such as DVD player, Blue-ray player, Set-top box etc.

•Connect HDMI output port to the HDMI display.
•You can control the device using the supplied Remote by pointing
to the built-in IR sensor.

•Connect to the IR Ext output with the IR receiver cable (optional) if you need to extend the distance of using the remote.

•Connect IR port with the IR blaster cable ( included in the package if needed for IR signal transmission. Place the IR blaster in direct line-of-sight of the equipment to be controlled.

•Connect the IR receiver cable ( included in the package if needed ) for IR signal reception. An adaptor is needed for connection. Make sure that the remote being used is in direct line-of-sight of the IR receiver.

•In case your HDMI device could not provide sufficient power, you can use the supplied USB cable and connect o your existing device for getting power to the unit.
