mini 1x4 HDMI splitter SP104M

Update: 2018/2/6      View:
  • Brand:    COAS
  • Type:    SP104M
  • Order Online
Introduction



   HDMI Splitter 1x4 mini

Model No. SP104M

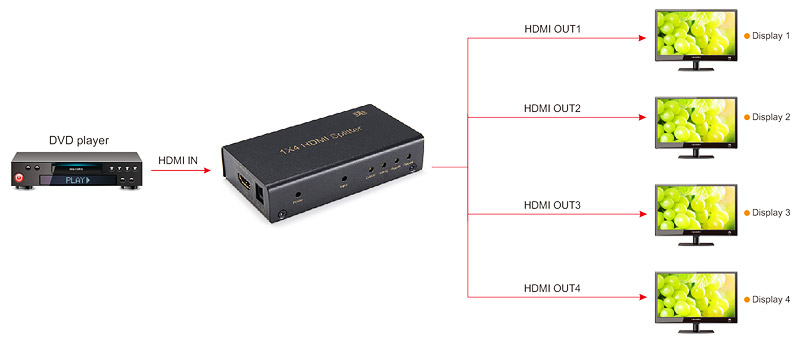

1HDMI High Speed input signal split to 4 HDMI High Speed sink devices

HDCP2.0 compliant

3D and 4K*2K support


Input Port :                             1x HDMI (Female connector )

Out  port :                              4x HDMI ( Female connector )

Input lead Max Length :           for 4K — 7M , for 1080P — 20M
Output Lead Max Length :        for 4K — 7M , for 1080P — 15M
Bandwidth :                            10.2Gbps / 340MHz
Output Resolution :                 3840 x 2160@50/60, 480i — 1080P@ 50/60
                                             1080P@24/50/60 , VGA -UXGA
Operating Temp :                     -15°C~55°C/5°F~131°F
Deep Color :                           36bit
Housing :                               Metal
Dimensions :                           117mm(L) x 65mm(W) x 27mm(H)
Weight :
Power Supply Input :                100 -240V — 50/60 MHz ,0.3A max
Power Supply Output :              DC 5V —— 2000mA

.Allows you to cascade 4 or more splitters

.Can be used to create a larger distribution of HDMI signals

.Supports HDMI specifications - (Deep color, HD lossless audio formats, and Lip Sync)

.Supports Dolby Digital, DTS-HD, and Dolby True HD audio formats

.Front panel LED indicators

.Gives an indication of the presence of input/output signals

.CEC pass through

.External and internal EDID settings
