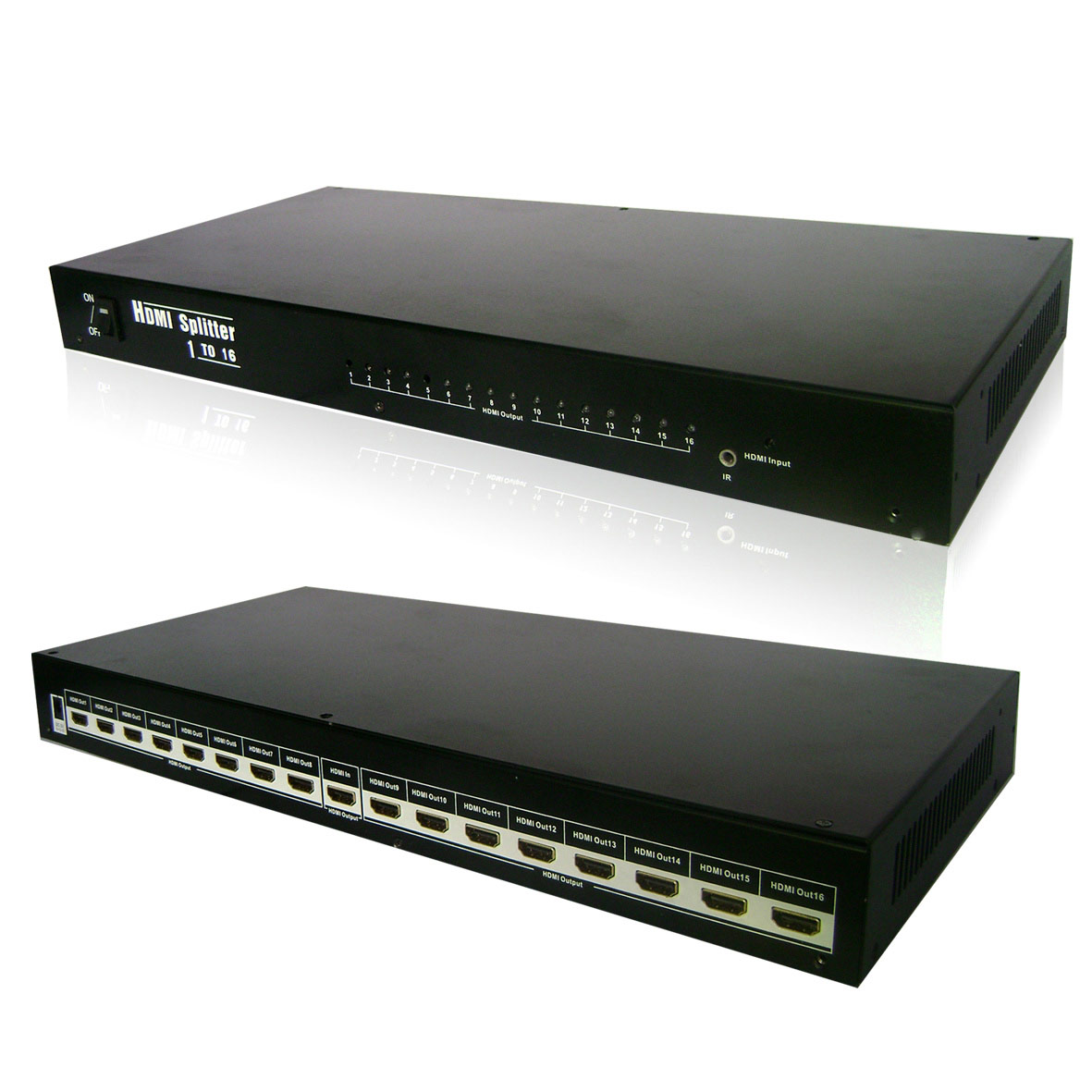

IR 1x16 HDMI Splitter SP1016IR

Update: 2016/1/12      View:
  • Brand:    COAS
  • Type:    SP1016IR
  • Order Online
Introduction


       HDMI SPLITTER 1X16

Model No. SP1016IR

1HDMI High Speed input signal split to 8 HDMI High Speed sink devices

HDCP2.0 compliant

3D and 4K*2K support

Bi-direcional IR control system
Receiver Range : 20 meter
Emitter Range :    6 meter

IR cable can be up to 300 meter



Input Port :                            1 x HDMI (Female connector ),

Out  port :                             16 x HDMI ( Female connector )

                                             1 x IR channel

Input lead Max Length :         for 4K — 7M , for 1080P — 20M
Output Lead Max Length :      for 4K — 7M , for 1080P — 15M
Bandwidth :                          10.2Gbps
Output Resolution :               3840 x 2160@50/60, 480i — 1080P@ 50/60
                                             1080P@24/50/60 , VGA -UXGA

Operating Temp :                  -15°C~55°C/5°F~131°F

Bandwidth:                              Up to 340MHz

Deep Color :                         36bit
Housing :                               Metal
Dimensions :                         437mm(L) x 204mm(W) x 46 mm(H)
Weight :                                g
Power Supply Input :             100 -240V — 50/60 MHz ,0.3A max
Power Supply Output :           DC 5V —— 2000mA

.Allows you to cascade 8 or more splitters


.Can be used to create a larger distribution of HDMI signals

.Supports HDMI specifications - (Deep color, HD lossless audio formats, and Lip Sync)

.Supports Dolby Digital, DTS-HD, and Dolby True HD audio formats.

.Super IR control,IR transport channel can be forward or backward

.Front panel LED indicators

.Gives an indication of the presence of input/output signals

.CEC pass through

.External and internal EDID settings

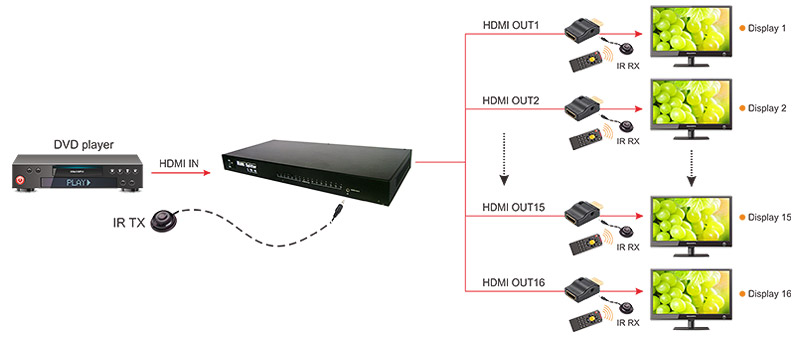

Source device IR control:

•Connect the IR port with a Transmitter TX cable included in the package if needed ) for IR signal transmission. Place the IR Blaster in direct line-of-sight of the equipment to be controlled.



•Connect a IR Receiver RX cable ( included in the package if needed ) at the HDMI input of the HD Display for IR signal reception.


HDMI IR Injector adaptor ( Model No. AD001 ) is needed for this connection. Make sure that the remote being used is in direct line-of-sight of the IR receiver
