USB IR Extender

Update: 2015/12/15      View:
  • Brand:    COAS
  • Type:    USIR03
  • Order Online
Introduction

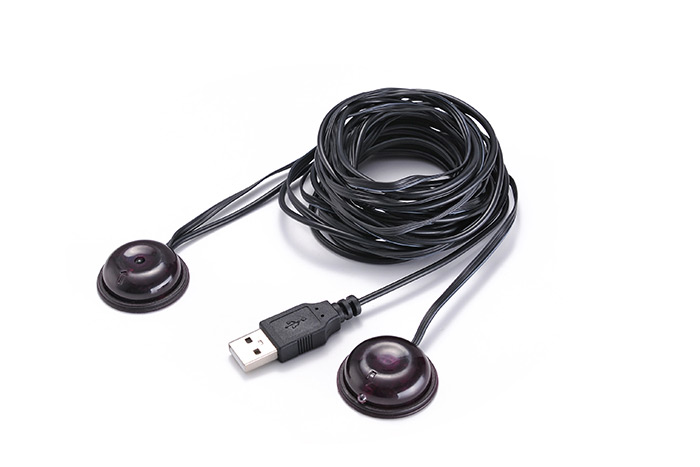

USB IR extender

Model No. USIR03

This all in one USB IR enables you to control your source device out of sight, such as in the cabinet or in another room. It is easy to set up, just simply plug and play.

The USB is plugged into an available port on one of the AV devices and this feeds the power needed for the attached IR receiver and IR transmitter.


Bi-direcional  coas IR control system
Receiver Range : 20 meter
Emitter Range :    6 meter

IR cable can be up to 300 meter


SPECIFICATION

USB Cable length: 10FT(3M)
Cable between IR Receiver & Transmitter: 3M USB Port: Type A male



FEATURES

•Simple application, plug and play USB powered IR extender cable
•Support wide reception frequency 20-60Khz , or 38Khz + ( any space in the room )
•Powerful multiple sensors inside transmitter enable it to work e
ffectively from

a wide range of positions in front of your source, precise positioning is not

usually required.
•Receiver range up to 20 meters

•Powered by USB type



PACKAGE CONTENTS

1X USB IR Extender

1X User Manual

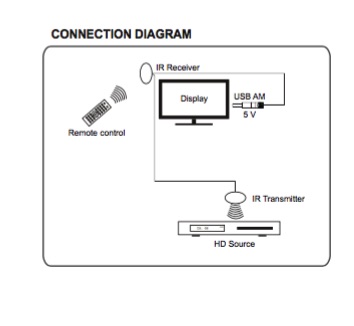

INSTALLATION

•Plug the USB connector into the USB port of your AV devices
•Place the IR Receiver in direct line o
sight at the extended display and away from any other IR devices that may cause interference.

•Place the IR Transmitter facing forwards or backwards the source devices to be controlled.
